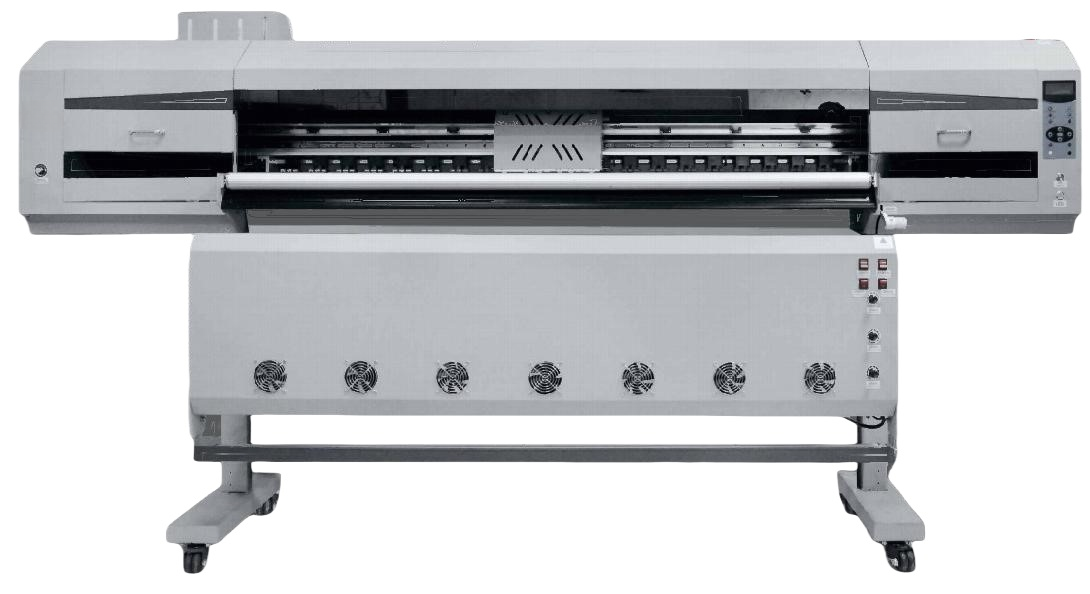

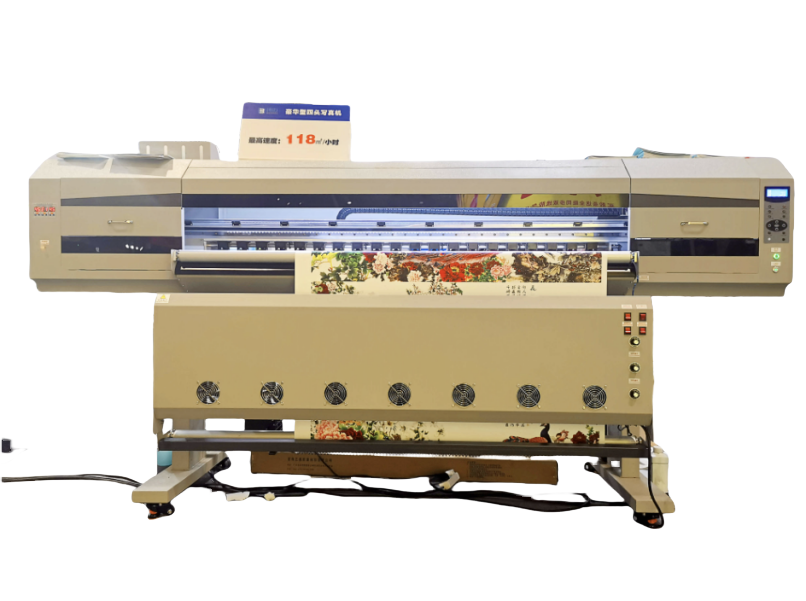

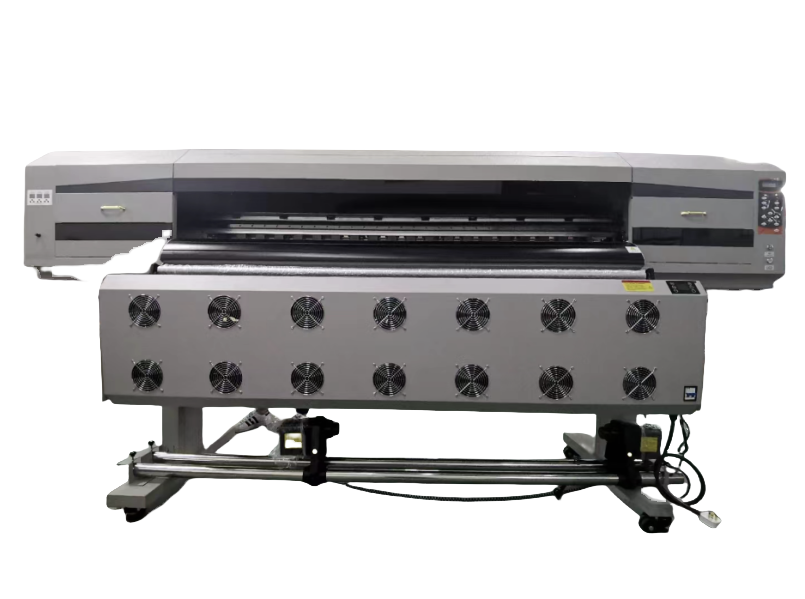

Printing width of 1.8 meters
Top level BYHX board control system
| Machine Model |
M-1804 |
| Print head quantity |
4 |
| Maximum print width |
1800mm |
| Board card system |
Shengzhen Hansen/Beijing BYHX |
| Print head type |
I3200 |
DX5/DX7 |
4720 |
| Print speed |
3 PASS |
108㎡/h |
82㎡/h |
118㎡/h |
| 4 PASS |
80㎡/h |
65㎡/h |
82㎡/h |
| 6 PASS |
60㎡/h |
46㎡/h |
60㎡/h |
| ink |
Kind |
Weak solvent/water-based/thermal transfer ink |
| Color |
CMYK |
| Material Type |
PP/adhesive/photo paper/car stickers/single transparent stickers/film |
| Ink supply |
Automatic continuous supply system |
| Printhead maintenance |
One-touch automatic print head cleaning system |
| RIP Software |
Monte 6.0 (standard)/Photoprint (optional) |
| Data Interface |
Gigabit network card transmission |
| Assistance Systems |
Material retracting and unwinding system |
Automatic damping paper collector/double damping paper collector |
| Printhead height |
The distance from the printing platform is adjustable 2-5mm |
| Equipment related information |
Working voltage |
AC220V 50/60HZ |
| Power |
3500W |
| Work Environment |
Working temperature: 22-28℃ Humidity: 40%-60% |
| Machine size |
L3220mm*W920mm*H1540mm |
| Packing size |
L3650mm*W840mm*H800mm |
Product features:
1.Japanese THK high-precision silent guide rail,Reese servo motor,better guarantee the stability of the machine for a longtime printing;
2.Anodic hardening adsorption platform,platform suction adjustment function,material thickness is not afraid,more smooth material;
3.The front,middle and rear platform independent constant temperature heating system,three rows of heat cycle infrared dryer,more effective and uniform drying medium,reduce energy consumption,environmental protection and energy saving;
4.The print head on both sides of the anti-collision system,lack of material from the dynamic emergency stop system,to prevent the printing of pollution platform;

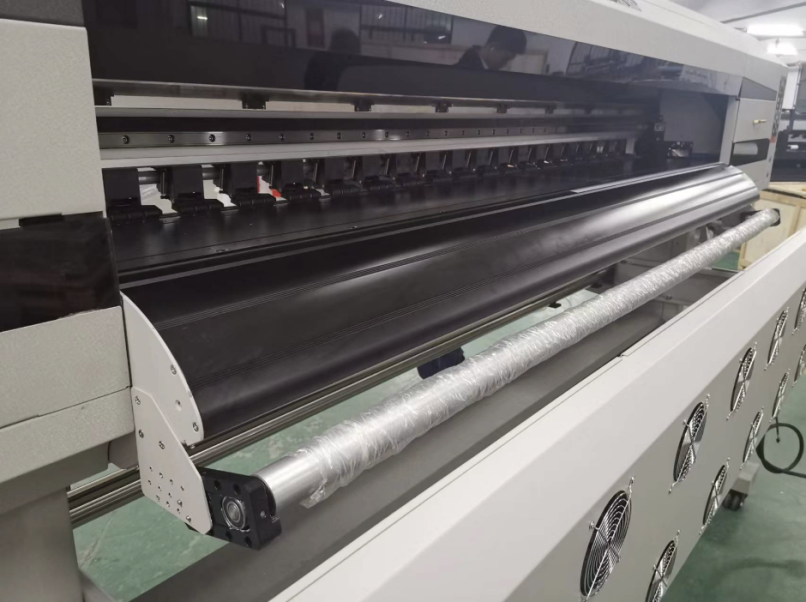

5.Configuration tension material receiving system,to ensure that ultra-high speed material no arch/wrinkle;
6.coil material after releasing and rewinding mode,full cooling more convenient refueling;
7.Top BYHX main control system,heavy reinforced aluminum beam frame
Applications:
