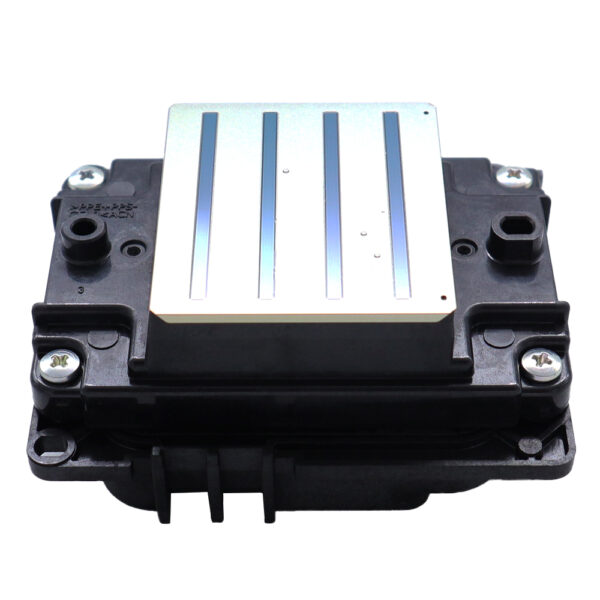

Product name I3200-E1
Ink type Eco Solvent
Type PrecisionCore MicroTFP Printhead
Width x Depth x Height 69.1 x 59.4 x 35.6 mm
Weight 82 g
Number of nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Effective print width 33.8 mm (1.33 inches)
Droplet
ejection
performance Binary 6 pl at 43.2 kHz
3 levels grey scale 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale 3.8, 5.5, 8.7 pl at 21.6 kHz
Viscosity range 3-4 mPa·s
Positioning Mechanism Reference hole
